CLAMP СОЕДИНЕНИЯ |
|
|
|
Clamp-соединения
|
Clamp-соединение в сборе
|
| Размер |
Измерение (мм) |
| DIN |
A |
B |
| 10 |
34,0 |
36,0 |
| 15 |
34,0 |
36,0 |
| 20 |
34,0 |
36,0 |
| 25 |
50,5 |
43,0 |
| 32 |
50,5 |
43,0 |
| 40 |
50,5 |
43,0 |
| 50 |
64,0 |
43,0 |
| 65 |
91,0 |
56,0 |
| 80 |
106,0 |
56,0 |
| 100 |
119,0 |
56,0 |
| 125 |
155,0 |
56,0 |
| 150 |
183,0 |
56,0 |
|

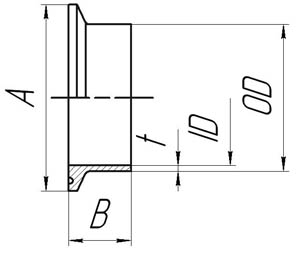

Зажимной ободок Clamp
|
| Размер |
Измерение (мм) |
|
| DIN |
OD/ID x t |
A |
B |
| 10 |
13/10 x 1,5 |
34,0 |
36,0 |
| 15 |
19/16 x 1,5 |
34,0 |
36,0 |
| 20 |
23/20 x 1,5 |
34,0 |
36,0 |
| 25 |
29/26 x 1,5 |
50,5 |
43,0 |
| 32 |
35/32 x 1,5 |
50,5 |
43,0 |
| 40 |
41/38 x 1,5 |
50,5 |
43,0 |
| 50 |
53/50 x 1,5 |
64,0 |
43,0 |
| 65 |
70/66 x 2,0 |
91,0 |
56,0 |
| 80 |
85/81 x 2,0 |
106,0 |
56,0 |
| 100 |
104/100 x 2,0 |
119,0 |
56,0 |
| 125 |
129/125 x 2,0 |
155,0 |
56,0 |
| 150 |
154/150 x 2,0 |
183,0 |
56,0 |
|
Заглушка
|
| Размер |
Измерение (мм) |
| DIN |
A |
B |
| 10 |
34,0 |
6,0 |
| 15 |
34,0 |
6,0 |
| 20 |
34,0 |
6,0 |
| 25 |
50,5 |
6,0 |
| 32 |
50,5 |
6,0 |
| 40 |
50,5 |
6,0 |
| 50 |
64,0 |
7,0 |
| 65 |
91,0 |
8,0 |
| 80 |
106,0 |
8,0 |
| 100 |
119,0 |
12,0 |
| 125 |
155,0 |
12,0 |
| 150 |
183,0 |
56,0 |
|

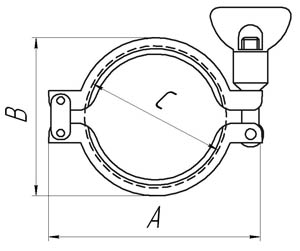

Хомут Clamp
|
| Размер |
Измерение (мм) |
|
| DIN |
A |
B |
C |
| 10 |
69,0 |
43,0 |
37,0 |
| 15 |
69,0 |
43,0 |
37,0 |
| 20 |
69,0 |
43,0 |
37,0 |
| 25 |
90,9 |
63,8 |
54,0 |
| 32 |
90,9 |
63,8 |
54,0 |
| 40 |
90,9 |
63,8 |
54,0 |
| 50 |
103,9 |
77,4 |
67,1 |
| 65 |
130,9 |
103,6 |
94,5 |
| 80 |
159,5 |
132,6 |
122,2 |
| 100 |
159,5 |
132,6 |
122,2 |
| 125 |
254,0 |
197,0 |
187,0 |
| 150 |
254,0 |
197,0 |
187,0 |
